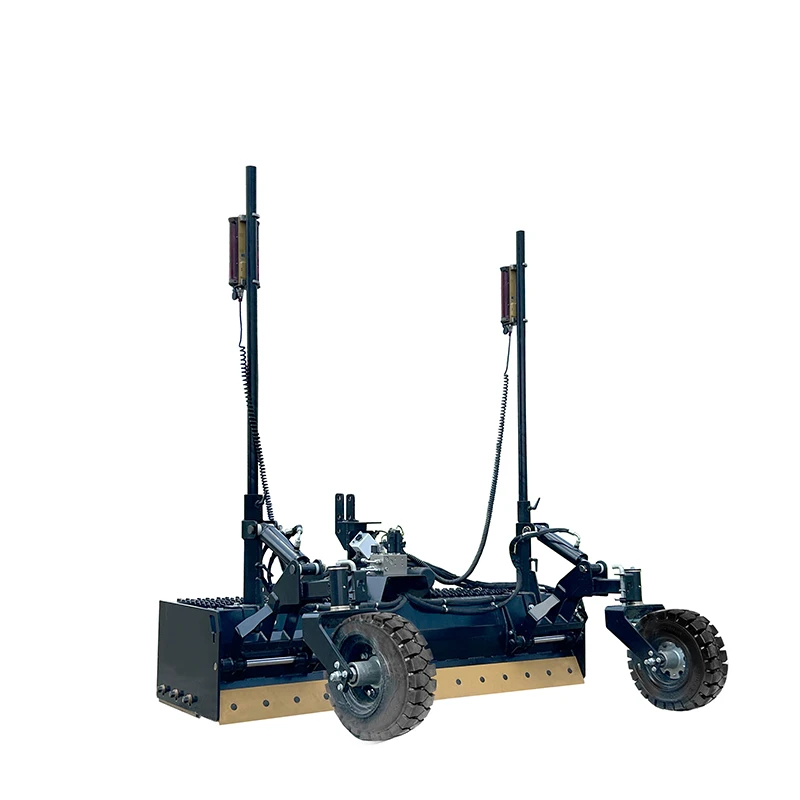

Dual Laser Grader

Model Name: 12PJ-250C Laser Leveling Machine (Dual Laser)

Working Dimensions (L×W×H): 3800×2540×2480 mm

Structure Type: Traction Type

Maximum Working Width: 2500 mm

Required Tractor Power: ≥88.2 kW

Required Tractor PTO Speed: 720 r/min

Control Method: Laser Control

Leveling Blade Type: Straight Scraper

Leveling Blade Length: 2500 mm

Leveling Blade Height: 700 mm

Maximum Leveling Blade Lift Height: 300 mm

Laser Transmitter Model: KF508

Laser Transmitter Effective Radiation Diameter: 400 m

Laser Receiver Model: LS608

Number of Laser Receivers: 2

Hydraulic Cylinder Count: 2
