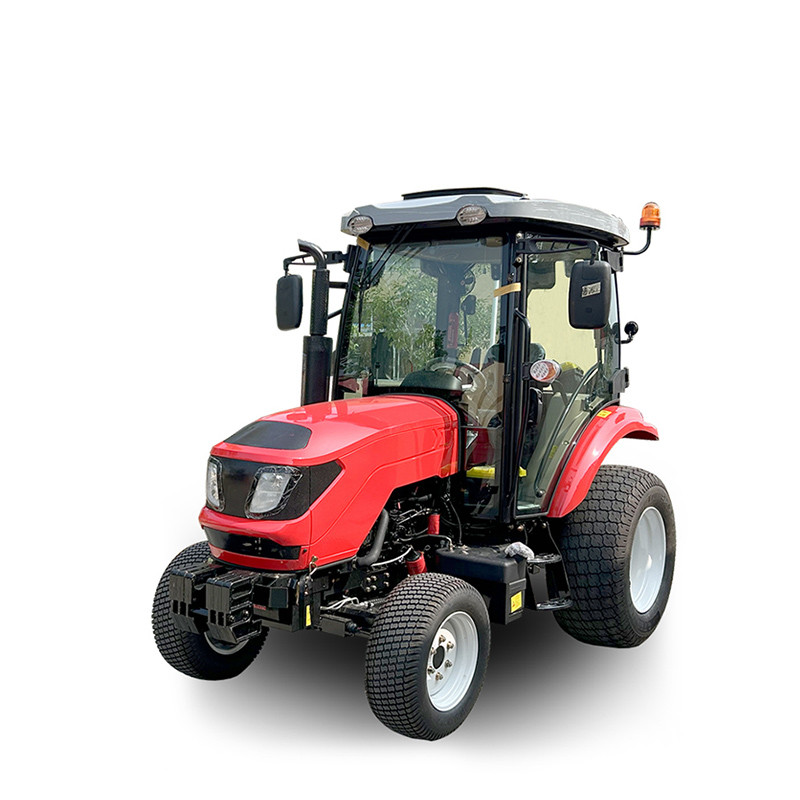

Model：SD404

Horse Power 40Hp

Chassis Model TY

Drive Model 4x4

Net Weight 1450 kgs

Size 3450 x 1500x2000 mm

Wheel Tread 1100/1200mm

Wheel Base 1800mm

Ground Clearance 310 mm

Engine

Information

Engine Brand Lai Dong

Engine Model KM495BT

Engine Power 33 kw

Rated Speed 2400 r/min

Cylinder Number 4

Cylinder Diameter 95 mm

Start Way Electric Start

Cool Way Water Cooling and Air Cooling

Transmission

& Drive

Clutch Single Stage

Gear Shift 8F+2R

Tire Size 6.5-16/12.4-24 Inch

Drive Speed F: 2.06-31.30 km/h, R: 2.71-12.52 km/h

Min. Turn Radius Side Brake: 2.60 m. Normal Brake: 3.0 m

Steering Hydraulic Power

Working

Device Three Point Hitch Ⅰ Type

Lift Device Inner Lifter

Gear Pump 16#, Hydraulic Output Flow: 38 Liter/Minute

Output Valve Two Group

Tow Bar U Type

PTO 6 Splines,35mm diameter, 540/720 rpm

Ballast Front and Rear Ballast

ROPS Roll Bar and Roof

Iron frame packing With
